Bardac Drives

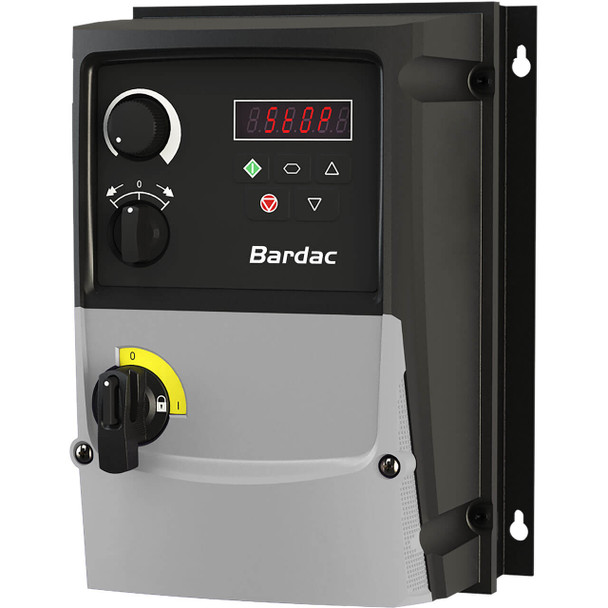

E3-110023-101B | Outdoor 4X Rated, 0.5HP, 115V, 1-ph in, 230V, 3-ph out

SKU:
E3-110023-101B
Availability:
Typically in stock (Maryland)
Power:
0.5HP
Input (Supply):
115V, 1-ph in
Output Rating:
230V, 3-ph, 2.3A
Amps:
2.3A
Enclosure Type:
NEMA 4X
Frame Size:
1
Weight:
6.8 lb
Dimensions (H x W x D):
9.2" x 6.4" x 7.1"
More Information:
Data Sheet

Description

E3 Series AC drives are designed to give the very best in value, performance, and ease of use.E3 Series connects to drive.web

Simple Commissioning

14 parameter basic setup. Default settings suitable for most applications. Contactor style connection for simple wiring.

Up to 50 parameters available in total for a highly flexible performance.

Intuitive Keypad Control

Precise digital control at the touch of a button.

Integral Brake Transistor

Saves space, cost, and time for installation. Frame 2 and up.

Application Macros

Switch between Industrial, Pump & Fan modes to optimize E3 Series drives for your application.

Optional Internal Category C1 EMC Filter

An optional internal filter is available for every E3 Series drive. Please consult factory for details and lead time.

Cat C1 according to EN61800-3:2004

Sensorless Vector Control for all Motor Types

  • Induction Motors (IM)
  • Permanent Magnet Motors (PM)
  • Brushless DC Motors (BLDC)
  • Synchronous Reluctance Motors (SynRM)
  • Line Start PM Motor (LSPM)

Options:

NEMA 4X - Up to 30HP

  • Outdoor rated tough polycarbonate enclosure. (Sunshield required for outdoor rating. Not included.)
  • Sizes 1-4 up to 30HP/22kW
  • Dust tight and washdown ready

Direct Mounting

Install directly on your processing equipment and be sure of protection from dust, contaminants and high‑pressure washdown.

Locally Customisable

Flat front to terminal cover with mounting points for switches and an internal PCB.

Coated Heatsink as Standard

Ideal for hygiene based operations requiring washdown — such as food and beverage

Switched Models

Simply wire up the drive, turn the inbuilt potentiometer and the motor will start running – allowing immediate energy savings.
