Bardac Drives

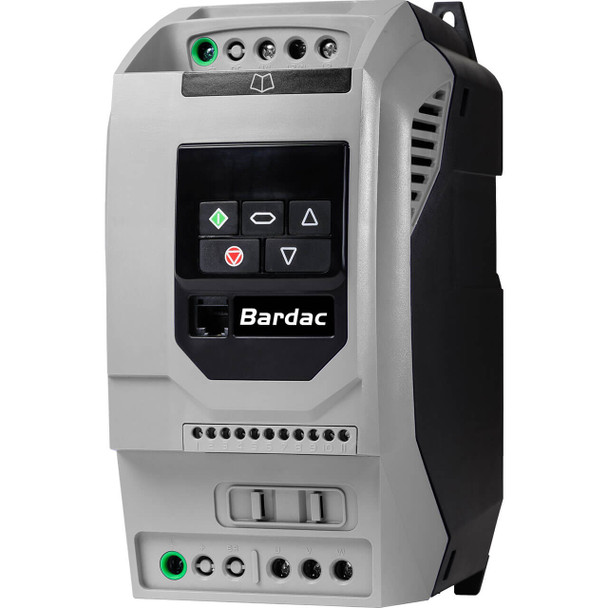

E3-220070-3042 | Industrial IP20, 2HP, 230V, 3-ph in, 230V, 3-ph out

SKU:
E3-220070-3042
Availability:
Typically in stock (Maryland)
Power:
2HP
Input (Supply):
230V, 3-ph in
Output Rating:
230V, 3-ph, 7A
Amps:
7A
Enclosure Type:
IP20 (open)
Frame Size:
2
Weight:
3.75 lb
Dimensions (H x W x D):
8.7" x 4.4" x 5.9"
More Information:
Data Sheet

Description

E3 Series AC drives are designed to give the very best in value, performance and ease of use.E3 Series connects to drive.web

Simple Commissioning

14 parameter basic setup. Default settings suitable for most applications. Contactor style connection for simple wiring.

Up to 50 parameters available in total for a highly flexible performance.

Intuitive Keypad Control

Precise digital control at the touch of a button.

Integral Brake Transistor

Saves space, cost, and time for installation. Frame 2 and up.

Application Macros

Switch between Industrial, Pump & Fan modes to optimize E3 Series drives for your application.

Optional Internal Category C1 EMC Filter

An optional internal filter is available for every E3 Series drive. Please consult factory for details and lead time.

Cat C1 according to EN61800-3:2004

Sensorless Vector Control for all Motor Types

  • Induction Motors (IM)
  • Permanent Magnet Motors (PM)
  • Brushless DC Motors (BLDC)
  • Synchronous Reluctance Motors (SynRM)
  • Line Start PM Motor (LSPM)

Options:

IP20 - Up to 50HP

Compact, robust and reliable general purpose drive for panel/cabinet mounting

  • Sizes 1-5 cover the full power range, up to 50HP/37kW
  • Operates up to 122°F
  • Power supply connects at the top
  • Motor supply connect at the bottom

Fast Connection

5mm rising clamp terminals with captive screws

Quick Reference

Integrated help card

Simple Installation

DIN rail (through Frame 3) and keyhole mounting (all frame sizes)

ModbusRTU and CAN

On-board as standard

T3 Stick

Rapid parameter cloning and Bluetooth PC interface

Dual Analog Inputs
