Bardac Drives

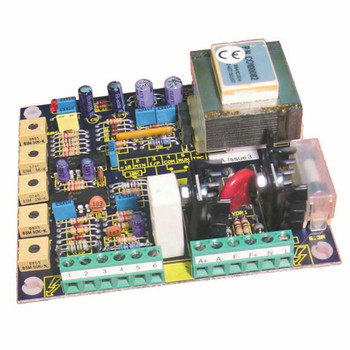

K1220 | 12.2A, 1-ph, 120V/230V, Non-Regen, Non-Reversing, Non-Isolated DC Drive

SKU:
K1220
Availability:
Typically in stock (Maryland)
Power at 90VDC:
1HP
Input (Supply):
120V, 1-ph in
Power at 180VDC:
2HP
Input (Supply):
230V, 1-ph in
Amps:
12.2A
Enclosure Type:
IP20 (open)
Weight:
-
Dimensions (H x W x D):
4.2" x 1.8" x 4.7"
More Information:
Data Sheet

Description

K-Series Drives

Ultra compact DC motor control. Non-isolated.

Make upgrading your existing control panel easier. Save space in new DC single direction motor control systems. The ultra compact DIN rail mounting package lets you install quickly.

Three options are available for controlling DC motors up to 12.2 Amps. You can use this versatile range of non-isolated controllers for permanent magnet, shunt wound motors, or universal motors.

To make your installation quick and simple, all 340, 680, and 1220 series controllers have easy to access drive adjustments, plug-on screw terminals, and a small footprint.

Key Features:

  • K340 controller for DC motors rated up to 3.4 Amps (0.75HP / 0.55kW)
  • K680 controller for DC motors rated up to 6.8 Amp (1HP / 0.75kW)
  • K1220 controller for DC motors rated up to 12.2 Amps (2HP / 1.8KW)
  • DIN rail mounting
  • Easy-to-access drive adjustments
  • Plug-on screw terminals
  • Small footprint
  • Standards: UL, C-UL, CE

Technical Highlights:

  • Switch selectable Tach or Armature voltage feedback
  • Adjustable IR compensation for improved AVF speed regulation
  • Selectable dual voltage AC supply (Dual 115 & 230 volts, 50/60Hz supply)
  • Aux speed trim input available in AVF mode
  • IP20 Enclosure

User Adjustable:

  • Ramp
  • Max motor speed
  • Min motor speed
  • IR comp
  • Max motor current

Terminals:

  • +10V
  • Min
  • Input +
  • Common
  • Run
  • Tach f/b

Optional drive.web smarty:

For complete process automation Model dw210-1107 uses discrete I/O interface to provide:

  • Ethernet networking
  • Internet access
  • Powerful function blockprogramming
  • ModbusRTU and ModbusTCP/IP
  • Additional remote I/O
  • savvyPanel smart touchscreens

Model Comparison:

Model AC Supply Range Typical Armature Voltage Max Continuous Armature Current Nominal Power Dimensions (H x W x D)
K340 100 to 130V 90V 3.4A 0.35HP / 0.25kW 4.2" x 1.4" x 4.7"
200 to 264V 180V 3.4A 0.75HP / 0.55kW
K680 100 to 130V 90V 6.8A 0.75HP / 0.55kW 4.2" x 1.8" x 4.7"
200 to 264V 180V 6.8A 1.0HP / 0.75kW
K1220 100 to 130V 90V 12.2A 1.0HP / 0.75kW 4.2" x 1.8" x 4.7"
200 to 264V 180V 12.2A 2.0HP / 1.8kW
