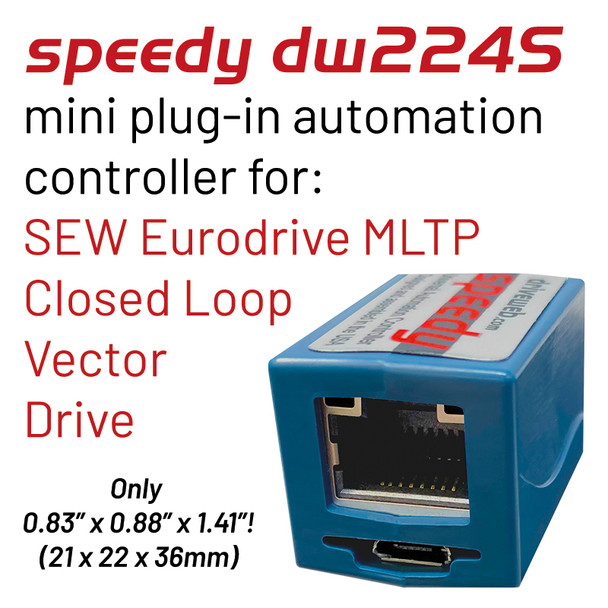

speedy dw224S - for SEW Eurodrive MLTP Closed Loop Vector Drive

Smart Distributed Control Concept

• No system bandwidth degradation with systems of any size
• One completely homogeneous environment for drives, controls, operator stations, i/o – everything!
• Complete data consistency throughout a system
• The ability to store the entire system configuration in the controllers for easy field total access
• The ability to manage total system program thread and hierarchy
• Consistent multi-level password protection

Key Features

• Ethernet peer-to-peer networking
• Gateway options for ModbusTCP/IP, EIP, CANopen and others
• Internet access
• Graphical Signal Flow Diagram system documentation
• Easy interface to most operator stations, PLCs, SCADA, etc.
• Event driven emails from devices

Precision

• 16-bit integer basic arithmetic
• 32-bit floating point calculator functions

Standard Function Block Library

• savvyPanel Library
• ModbusTCP/IP Client Ethernet
• Adders, Subtracters, Multipliers, Dividers, Clamps, Switches, Logic
• Event driven email messages
• Full featured PI controllers

Optional Function Block Libraries

• EIP/PCCC Ethernet Client for Allen Bradley PLC
• Advanced Process Control & PLC
• Winder Control
• Advanced Math

Standards

CE, FCC part 15, IECS-003, UL/cUL in 2014

speedy Standard Programmable Controller

• Basic drive coordination and peer to peer networking over Ethernet
• Basic machine control

Includes 100baseTX Ethernet and USB port with system wide access together with:
basic arithmetic, logic, PI control, clamp, switches, basic savvyPanel touchscreen PC/iOS control, systems utilities, event email

speedy Option Pack 1 - Smart systems controller

• Process line drive coordination
• General purpose machine control

Includes all standard controller features together with:
advanced arithmetic, logic, process control, counters, timers, touch screen PC/iOS control, systems utilities

Incorporates standard drive.web options:

• -04, ModbusTCP/IP slave Ethernet
• -05, Advanced Process Control Function Block Library
• -25, EIP/PCCC Ethernet slave for Allen Bradley interface
• -26, savvyPanel full featured, touchscreen PC and iOS operator station controller

speedy Option Pack 2 - Smart systems, winders, and motion

• Full featured winder control with single or multi cores, turret indexing, auto splicing, open and closed loop, edging
• Web handling, tension control, accumulators, infeeds, center winding, slip core, surface winding

Includes all Pack 1 features together with:
diameter calculation, linear and hyperbolic taper control, static/dynamic friction compensation, inertia compensation

Incorporates standard drive.web options:

• -04, ModbusTCP/IP slave Ethernet
• -05, Advanced Process Control Function Block Library
• -06, Winder Control Function Block Library
• -25, EIP/PCCC Ethernet slave for Allen Bradley interface
• -26, savvyPanel full featured, touchscreen PC and iOS operator station controller
• -36, Motion Control Function Block Library with trapezoidal & cam motion
