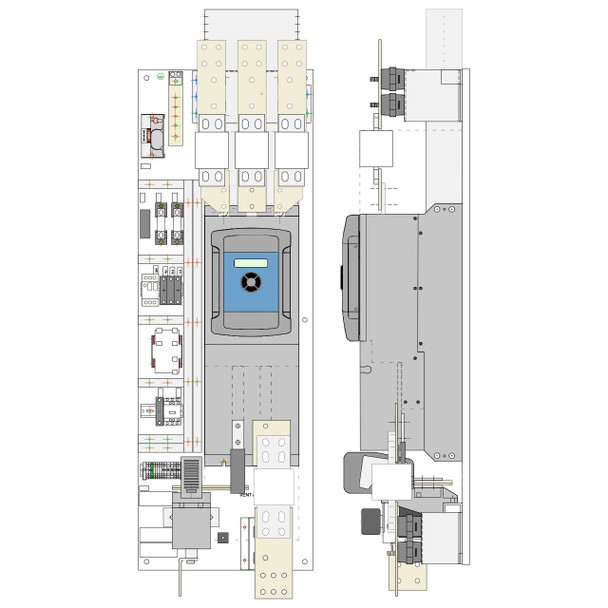

powerPLX360/850d | 850A, 3-ph, 230V/460V, Regen, Reversing, DC Drive, includes: integrated input contactor, fusing, Ethernet and USB interface

SKU:
powerPLX360/850d
Availability:
Typically 3 weeks A.R.O.
Power at 240VDC:
250HP
Input (Supply):
230V, 3-ph in
Power at 500VDC:
500HP
Input (Supply):
460V, 3-ph in
Amps:
850A
Enclosure Type:
Open Chassis
Frame Size:
4
Weight:
240 lb
Dimensions (H x W x D):
59.3" x 18.5" x 14.1"
More Information:
Data Sheet

Description

PL/X Series DC Drives

Digital 3-Phase Drives up to 2000HP+

The PL/X series DC Drive is a fully digital DC drive system providing 10HP – 2000HP+ output power. Available in 2Q (single direction) and 4Q (fully regenerative) variants, the range comprises 5 compact chassis sizes with models rated from 12A to 2250A output current. The PL/X boasts an extremely versatile operating input voltage range of 12V – 500VAC as standard. Options are available for 600V and 690VAC input.

powerDRIVE Packages Come Complete with:

  • Main contactor
  • High speed 3-phase line fuses
  • High speed armature fuse
  • High speed control/field fuses
  • Line filter (100HP & up)
  • Optional motor blower starter (100HP & up)

Standard Features:

  • Total digital control
  • Basic peer-to-peer link
  • 40 character backlit display
  • Friendly, easy menu structure
  • Modern, compact packaging
  • Extensive, flexible, plug-in I/O
  • RS232 serial port
  • Easy configuration saving and cloning
  • Built-in automatic field controller
  • Built-in programmable control functions for PID, winders, orientation, etc.
  • Tach, encoder, and arm volts feedback
  • Easy reliable autotune

dw221 Ethernet and USB Included:

  • savvyPanel Library
  • ModbusTCP/IP Client Ethernet
  • Adders, Subtracters, Multipliers, Dividers, Clamps, Switches, Logic

dw221 Options:

  • Event driven email messages
  • Full featured PI controllers
  • EIP/PCCC Ethernet Client for Allen Bradley PLC
  • Advanced Process Control & PLC
  • Winder Control
  • Advanced Math

Field Bus Options:

  • Devicenet, Profibus DP

PL Series ... easy to configure!

  • Simple, intuitive configuration techniques with clear display of information
  • No pots or switches to set
  • Accurate display of voltages and currents
  • Positive displacement push buttons for tactile feel
  • High power processor and large memory will ensure ease of product enhancement in the future
  • 2-button reset gets users back to OEM set up
  • Powerful savvy graphical configuration, diagnostics and system design tools
The powerful savvy configuration tools are used for the PL Series DC drives, AC drives, drive.web programmable controllers, savvyPanel operator stations and complete systems.

Key Features:

Analog Inputs & Outputs

  • 8 analog inputs & 4 analog outputs (12 bits)
  • All outputs short circuit protected
  • All inputs over voltage protected up to +50V
  • Inputs configurable 5 to 30V
  • Input volts programmable up to +/-30V

Field Configurations

  • Fixed current
  • Fixed voltage
  • Automatic field weakening
  • Delated field quench
  • Standby field setting
  • Field economy

Diagnostic Monitoring

  • Scope terminal monitors selectable values
  • All analog input voltages
  • All digital input states
  • All analog output voltages
  • All digital output states
  • Tach volts
  • Motor arm volts & amps
  • Field current
  • Output power kW
  • AC supply volts

Protection

  • Interline device networks
  • High energy MOV’s
  • Instantaneous overcurrent
  • Overcurrent (inverse time)
  • Field fail and overcurrent
  • Motor over temperature
  • SCR (thyristor) over temp
  • Main power phase loss
  • Armature over volts
  • Over speed protection
  • Speed feedback mismatch
  • Stall protection
  • Standstill logic
  • SCR (Thyristor) trigger failure
  • Digital output short circuit

Digital Inputs & Outputs

  • 17 digital inputs & 7 digital outputs
  • Digital I/O short circuit protected
  • Digital inputs over volts protected to +50V (with settable switching levels)
  • Digital outputs over volts protected to +50V

Engineered Configuration Packages

Pre-configured generic apps are available for Open & Closed Loop Winders, Position Controls, Coordinated Line Drives, Indexing, registration and others

User Configurable Software Functions

PID blocks, Parameter profiler, Winder reel diameter calculator, Winder taper tension calculator, Winder torque/inertia/friction compensator, Preset speed function, Two summers, Software “motorized pot”, Interval timer, Current profiling, Zero speed with shaft position lock, Jog / crawl functions, Two filters, Dual motor swap, Latch, Sample & hold function, Auto self-tune current loop, Linear and S-ramps, Slack take-up, Batch Counter, Draw control

Speed Feedback - Standard

  • Analog tach
  • Encoder
  • Armature voltage
  • Encoder + armature volts
  • Encoder + analog tach

Communication Ports

  • Serial port (RS232)

Included Communications

  • drive.web peer-to-peer Ethernet
  • USB port for easy network wide setup
  • ModbusTCP/IP Ethernet
  • Ethernet: EIP (PCCC)
  • Profibus DP

Safe, “Doors Closed” Start Up & Operation

The dw221 Automation Controller is embedded as standard in all suffix d PL/X drives for easy system wide access to configure, connect, and control.
