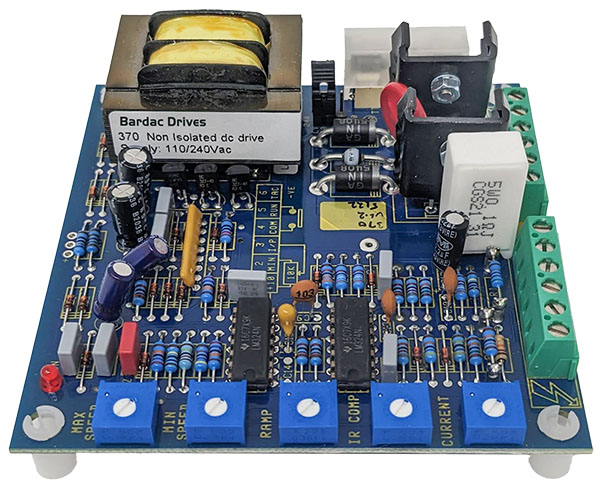

3703.7A, 1-ph, 120V/230V, Non-Regen, Non-Reversing, Non-Isolated DC Drive
Power at 90VDC0.25HP
Input (Supply)120V, 1-ph in, 230V, 1-ph in
Power at 180VDC0.5HP
Amps3.7A
Enclosure TypeIP20 (open)
Dimensions (H X W X D)3.9" x 3.9" x 1.7"
Single Phase DC Systems Drives
Non-isolated, non-reversing, non-regenerative single phase DC drive.
Must not be connected to other controllers without signal isolation being added, consider using isolated drive for systems applications.
370 Key Features:
- For DC motors rated up to 3.7 Amps
- Integral AC supply fuse
- Selectable dual international voltage supply 110/240V AC 50/60HZ
- Adjustable current overload protection
- Tachogenerator or armature voltage speed feedback
- Adjustable acceleration rate between 1 and 20 seconds
- Remote stop/start signal input facility
- Adjustable IR compensation for improved AVF speed regulation
- Sophisticated dual loop control
- Infinitely variable
- Speed adjustment via remote potentiometer
- Electronic soft start
- Drive run input
- Suitable for permanent magnet, shunt wound or universal motors
- Compact footprint
Dimensions: 1.65 × 3.93 × 3.93 in
