Single Phase DC Systems Drives

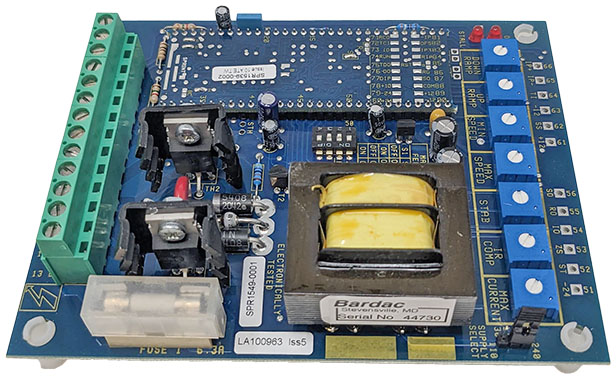

Non-isolated, non-reversing, non-regenerative single phase DC drive.
Must not be connected to other controllers without signal isolation being added, consider using isolated drive for systems applications.
400 Key Features:
- For DC motors rated up to 4 Amps
- Single Quadrant operation
- Non Isolated control electronics for single shaft applications
- Extra 50% peak torque for rapid acceleration or shock loads
- Torque control input for basic winding or tension control, with overspeed limiting
- Ultra stable potentiometer reference for optimum long term speed and torque stability
- Compact size
- International dual voltage supply compatability (100-130VAC and 200-264VAC)
- Integral AC supply fuse
- Output signals for easy display of motor speed and load
- Switch selectable feedback calibration – no component changes
- Precision tach rectifier
- Zero speed signal output
- Motor overload output
- Remote stop/start input
- User adjustable:
- Acceleration
- Deceleration
- Max motor speed
- Min motor speed
- Max motor current
- Stability
- IR comp
- Motor overload output
- Output signals for easy display of motor speed and load
- Zero speed signal output
- Switch selectable feedback calibration – no component changes
- Adjustable IR compensation for improved AVF speed regulation
- Adjustable stability control for optimum motor response
- Easily interfaced with armature reversing module
