Single Phase DC Systems Drives
This family of single phase DC drives, with isolated control circuitry, is designed to meet the most exacting requirements of high performance systems builders.
This range of full featured products use advanced manufacturing technologies to give unequaled value and functionality to OEMs and System Integrators with world wide markets and demanding applications.

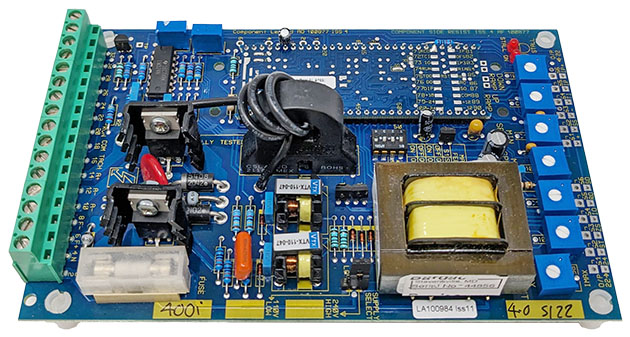

400i Key Features:
- For DC motors rated up to 4 Amps
- Single Quadrant operation
- Fully Isolated control electronics for interfacing with other systems
- Extra 50% peak torque for rapid acceleration or shock loads
- Torque control input for basic winding or tension control, with overspeed limiting
- Ultra stable potentiometer reference for optimum long term speed and torque stability
- Compact size
- International dual voltage supply compatability (100-130VAC and 200-264VAC)
- Integral AC supply fuse
- Output signals for easy display of motor speed and load
- Switch selectable feedback calibration – no component changes
- Precision tach rectifier
- Zero speed signal output
- Motor overload output
- Remote stop/start input
- User adjustable:
- Acceleration
- Deceleration
- Max motor speed
- Min motor speed
- Max motor current
- Stability
- IR comp
- Motor overload output
- Output signals for easy display of motor speed and load
- Zero speed signal output
- Switch selectable feedback calibration – no component changes
- Adjustable IR compensation for improved AVF speed regulation
- Adjustable stability control for optimum motor response
- Easily interfaced with armature reversing module
