K-Series Drives
Fully isolated DC motor control with compact design.

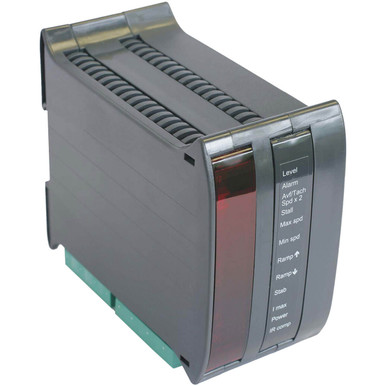

Improving or upgrading your single direction DC motor control system is easier with this series of fully-isolated controllers. The ultra compact DIN rail mounting package lets you quickly integrate the K340i, K680i, and K1220i series with your existing motor control equipment.
Three options are available for controlling DC motors up to 12.2 Amps. You can use this versatile series of fully-isolated controllers for permanent magnet or shunt wound motors.
To make your installation quick and simple, all K340i, K680i, and K1220i series controllers have easy to access drive adjustments, plug-on screw terminals, and a small footprint from just 2.4″ x 4.2″.
Key Features:
- Fully isolated control electronics
- K340i controller for DC motors rated up to 3.4 Amps (0.75HP / 0.55kW)
- K680i controller for DC motors rated up to 6.8 Amp (1HP / 0.75kW)
- K1220i controller for DC motors rated up to 12.2 Amps (2HP / 1.8KW)
- DIN rail mounting
- Easy-to-access drive adjustments
- Plug-on screw terminals
- Small footprint
- Standards: UL, C-UL, CE
Technical Highlights:
- Switch selectable Tach or Armature voltage feedback
- Adjustable IR compensation for improved AVF
- Speed or torque control
- Selectable dual voltage AC supply
- Aux speed input
- 150% overload with stall protection
User Adjustable:
- Max motor speed
- Min motor speed
- Up ramp
- Down ramp
- Stability
- Imax
- IR comp
- AVF/Tach switch
- Speed range switch
- AC voltage selector
- Signal level comparator
Terminals:
- +10V ref
- Min speed
- Ramped input +
- Output +/-
- Common
- Input +/-
- Pushbutton +
- Pushbutton –
- Run input
- Common
- Tach input
- Level output
- Level input
- Overload output
- Trip output
- Ramp output
- Demand output
- Speed output
- Current output
- Speed input
- Torque input
Optional drive.web smarty:
For complete process automation Model dw210-1107 uses discrete I/O interface to provide:
- Ethernet networking
- Internet access
- Powerful function blockprogramming
- ModbusRTU and ModbusTCP/IP
- Additional remote I/O
- savvyPanel smart touchscreens
Model Comparison:
| Model | AC Supply Range | Typical Armature Voltage | Max Continuous Armature Current | Nominal Power | Dimensions (H x W x D) |
| K340i | 100 to 130V | 90V | 3.4A | 0.35HP / 0.25kW | 4.2″ x 2.4″ x 4.7″ |
| 200 to 264V | 180V | 3.4A | 0.75HP / 0.55kW | ||
| K680i | 100 to 130V | 90V | 6.8A | 0.75HP / 0.55kW | 4.2″ x 2.8″ x 4.7″ |
| 200 to 264V | 180V | 6.8A | 1.0HP / 0.75kW | ||
| K1220i | 100 to 130V | 90V | 12.2A | 1.0HP / 0.75kW | 4.2″ x 2.8″ x 4.7″ |
| 200 to 264V | 180V | 12.2A | 2.0HP / 1.8kW |
