Basic Universal Automation Controller – 37 Terminals – Analog and Digital I/O
Generic Stock Build Includes:
100baseTX Ethernet, auto-negotiating, USB microB
Power: 24VDC
dw build options -04, -05, -25, -26
Screw or Clamp Terminals, DIN Rail Mounting
- 8 AI . . . analog in, -11V to +11VDC, 100KΩ, up to 1kHz (can be used as digital inputs)
- 8 AO . . . analog out, ~0.2 to +10.5VDC (unipolar), 10mA, up to 1kHz (can be used as DO or reference voltages)
- 8 DI . . . digital in, 100KΩ, 8V threshold, ±3V hysteresis, 50V max, up to 1kHz (can also be used as event inputs)
- 8 DO . . . digital out, 24V source, up to 350mA (shared), over current protected
The smarty dw240 series comes fully loaded:
- Install a dw240 on the customer interface terminal rail to save on wiring andinstallation costs!
- Floating point math for accurate and complex calculations
- Count and Frequency with 64-bit count forprecision positioning; to 1MHz input, 500kHz output
- High speed event inputs for positionmarkers and registration
- Processing and networking speeds that areup to 10 times faster than the dw210, especially with larger configurations
- Increased storage; four times more capacity
- Up to six frequency inputs with multiple modes
- Up to two current inputs; 0 to 20mA, 4-20mA
- Up to two encoder inputs
- Up to seven timing outputs with multiple modes to 500kHz; frequency, stepper, and digital
- Real-time clock with optional battery back up. Low-power mode allows real time clockto run without power from coin cell battery, USB power, or 24-hour internal storage. (Battery not included)
- Sensor bus for large, smarty-dedicated networks to be announced
- XIO, Extended I/O port for up to 10 fast-updating modules with up to 16 I/O on each. Modules for high current, high voltage, precision analog, load cells and more are planned

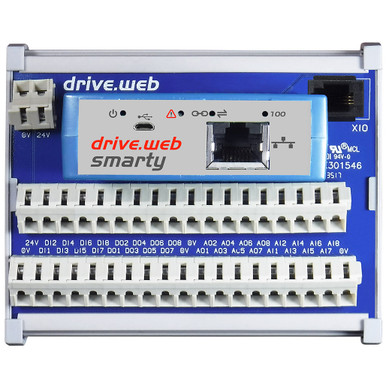

The smarty dw240 series controller consists of a “cassette” that connects directly to system field wiring via four alternative, passive “terminal carriers”. This means big installation savings!
100% compatiblewith all existing speedys, smartys, and savvyPanels!
