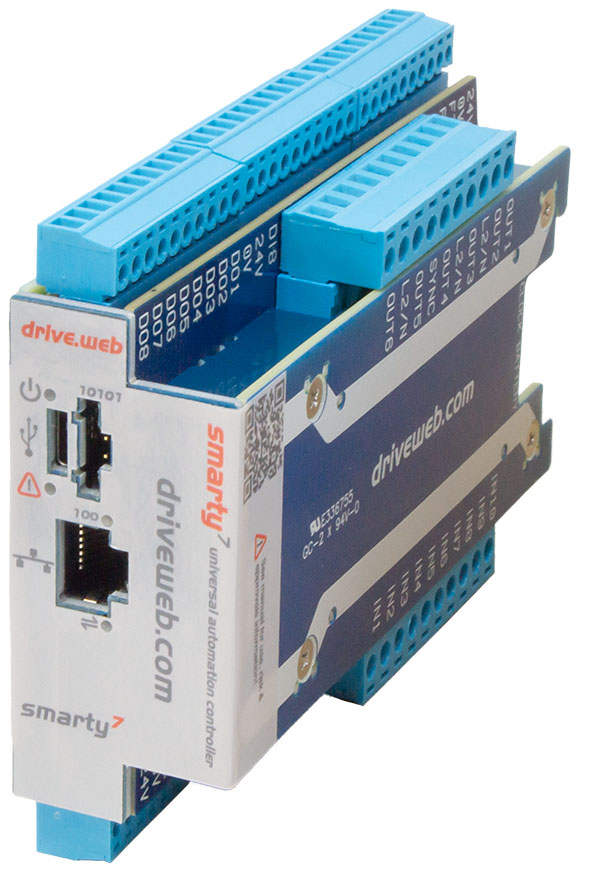

NEW smarty⁷ OEM PLC-HV

The new smarty⁷ OEM PLC-HV range of controllers are full featured, high performance, industrial, programmable controllers for process and machine control that provide cost effective solutions for systems of any size or complexity.

The Basics

• designed & engineered in the USA
• smart distributed control for the IIoT
• peer-to-peer connections over Ethernet
• unlimited i/o expansion
• Internet accessible
• 100% compatibility with all other drive.web devices
• savvy design, monitoring, and diagnostic tools

Features

• performs complex motion control functions & logic in milliseconds
• encoder pulses up to 1 MHz with 64 bit count
• shares encoder pulses in real-time between units over Ethernet
• 60 plug-in terminals
• cost effective in systems of any size or complexity
• floating point or integer math
• clock time & date with SNTP server interface
• savvy tools with data logging, trend plotting, smart phone interface, drag & drop connections
• 100baseTX Ethernet with drive.web peer-to-peer networking
• USB-C port – provides system-wide access to all devices – drives, controllers, touch screens, etc.
• Battery holder for real time clock

Applications

• basic switching to complex logic
• full featured arithmetic
• basic motion and position control
• PID function blocks
• material handling, batch, and counting functions

Standard savvyPanel Library

For iPad, iPhone, Android and touchscreen PC operator stations with arrows, meters, process graphics, pushbuttons, etc.

International Standards Compliance:

UL, cUL, CE, UKCA, FCC 47 CFR § 15, and ICES-003

smarty⁷ OEM PLC-HV Universal Automation Controller is a new member of the drive.web family of products with options of extended precision analog I/O, high voltage I/O, relay I/O and more!

drive.web Distributed control with peer-to-peer connections over Ethernet ensures:

• Unlimited I/O expansion
• Unlimited system processing capacity
• Cost effective control for systems of any size or complexity
• Completely homogeneous integration of controllers, drives, I/O, and HMIs
• Easy IIoT enterprise integration
• Elimination of conventional PLC or CPU bottlenecks

Basic smarty⁷ Features & Functions:

• 8, Analog Inputs: ±11V (16 bits) analog in, or 5/24 VDC digital in
• 8, Analog Outputs: ±10.5VDC, 10mA
• 8, Digital Inputs: 50VDC max, 8VDC threshold, 3V hysteresis, 1kHz
• 8, Digital Outputs: 24VDC, up to 300 mA shared
• 6, Fast I/O: digital inputs (100Khz) or stepper/digital out (500Khz)
• 1, Fast timing/stepper/frequency output: 30 VDC 100Khz
• 2, Encoder inputs: Quadrature A/B (or 1, ABZ), 5/24V, 1 Mhz
• ModbusRTU client port [RS485 (server optional)]
• ModbusTCP/IP client and server (Ethernet)
• EIP/PCCC (Ethernet)
• Accelerometer, barometer, thermometer, hygrometer
• Process Control Library
• savvyPanel touch screen controller
• Basic Motion Functions

Additional PLC-HV Features:

• 10, 120/240 VAC Digital Inputs
• 6, 120/240 VAC Digital Outputs
