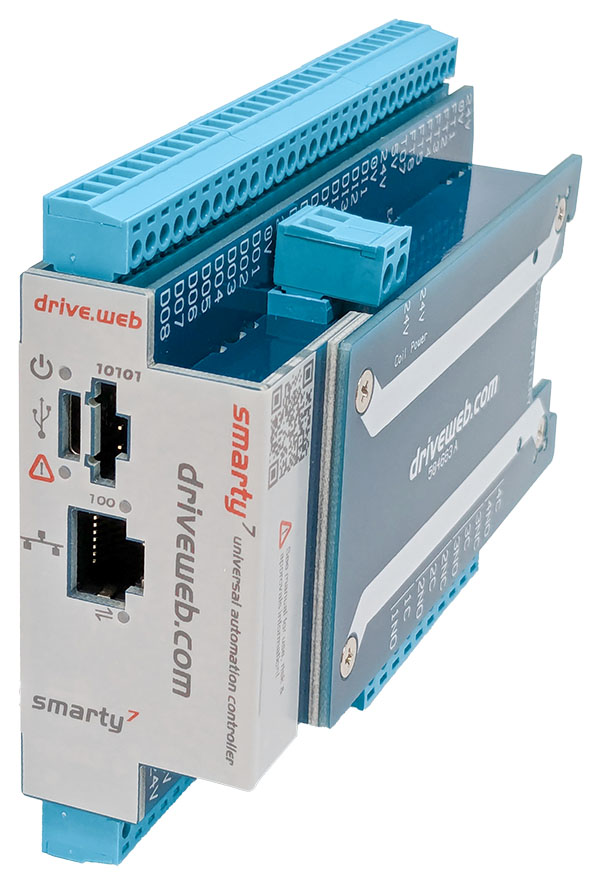

NEW smarty7-RLIO
The new smarty7, dw250-RLIO series controllers are a full featured range of high performance, industrial, programmable controllers for process and machine control that provide cost effective solutions for systems of any size or complexity.
The Basics
- designed & engineered in the USA
- smart distributed control for the IIoT
- peer-to-peer connections over Ethernet
- unlimited i/o expansion
- Internet accessible
- 100% compatibility with all other drive.web devices
- savvy design, monitoring, and diagnostic tools
Features
- performs complex motion control functions & logic in milliseconds
- encoder pulses up to 1 MHz with 64 bit count
- shares encoder pulses in real-time between units over Ethernet
- 60 plug-in terminals
- cost effective in systems of any size or complexity
- floating point or integer math
- clock time & date with SNTP server interface
- savvy tools with data logging, trend plotting, smart phone interface, drag & drop connections
- 100baseTX Ethernet with drive.web peer-to-peer networking
- USB-C port – provides system-wide access to all devices – drives, controllers, touch screens, etc.
- Battery holder for real time clock
Applications
- basic switching to complex logic
- simple arithmetic to complex math
- winders, open/closed loop with smart tension control
- registration, indexing, electronic line shaft over Ethernet
- advanced motion and position control
- PID function blocks
- smart pumping and air flow functions
- sun tracking for solar energy optimization
- material handling, batch, and counting functions
Standard savvyPanel Library
For iPad, iPhone, Android and touchscreen PC operator stations with arrows, meters, process graphics, pushbuttons, etc.
International Standards Compliance:
UL, cUL, CE, UKCA, FCC 47 CFR § 15, and ICES-003
smarty7 model dw250-HVIO Universal Automation Controller is a new member of the drive.web family of products with options of extended precision analog I/O, high voltage I/O, relay I/O and more!
drive.web Distributed control with peer-to-peer connections over Ethernet ensures:
- Unlimited I/O expansion
- Unlimited system processing capacity
- Cost effective control for systems of any size or complexity
- Completely homogeneous integration of controllers, drives, I/O, and HMIs
- Easy IIoT enterprise integration
- Elimination of conventional PLC or CPU bottlenecks
Basic smarty7 Features & Functions:
- 8, Analog Inputs: ±11V (16 bits) analog in, or 5/24 VDC digital in
- 8, Analog Outputs: ±10.5VDC, 10mA
- 8, Digital Inputs: 50VDC max, 8VDC threshold, 4V hysteresis, 1Khz
- 8, Digital Outputs: 24VDC, up to 300mA shared
- 6, Fast I/O: digital inputs (100Khz) or stepper/digital out (500Khz)
- 1, Fast timing/stepper/frequency output: 30 VDC 100Khz
- 2, Encoder inputs: Quadrature A/B (or 1, ABZ), 5/24V, 1 Mhz
- ModbusRTU client port [RS485 (server optional)]
- ModbusTCP/IP client and server (Ethernet)
- EIP/PCCC (Ethernet)
- Accelerometer, barometer, thermometer, hygrometer
- Advanced Process Control Library
- Winder & Web Tension Control Library
- Advanced Math Library
- savvyPanel touch screen controller
- Solar Position Library
- Advanced Motion Library
Additional RLIO Features:
- 2 Form-C relays: 30VDC, 240VAC 10A max
- 2 Form-A relays: 30VDC, 240VAC 10A max
