Bardac Drives

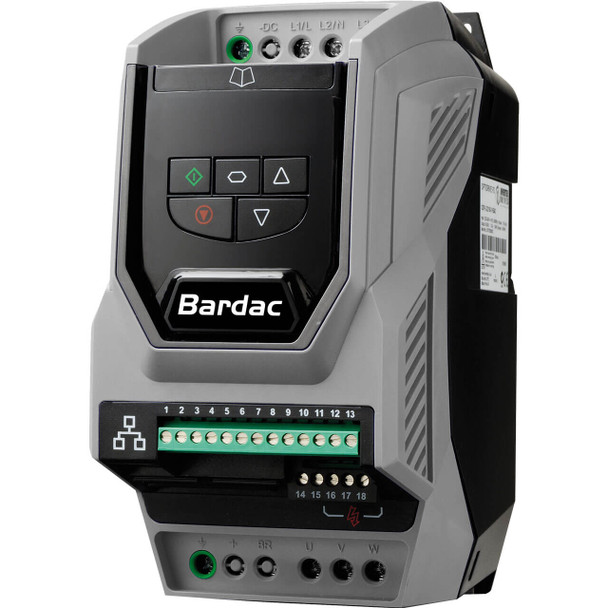

V3-260041-3012-T | Energy Efficient IP20, 3HP, 600V, 3-ph in, 600V, 3-ph out
- SKU:
- V3-260041-3012-T
- Availability:
- 4 weeks A.R.O.
- Power:
- 3HP
- Input (Supply):
- 600V, 3-ph in
- Output Rating:
- 600V, 3-ph, 4.1A
- Amps:
- 4.1A
- Enclosure Type:
- IP20 (open)
- Frame Size:
- 2
- Weight:
- 4 lb
- Dimensions (H x W x D):
- 8.7" x 4.4" x 7.3"
- More Information:
- Data Sheet
Description
Energy efficient fan and pump drives with a fast payback!
Multiple Pump Control
BACnet Interface
Built-In PID Controller
Control Modes:
- Sensorless Vector Speed Control
- PM Vector Control
- BLDC Control
- Synchronous Relectuance
Built-in EMC Filter
An internal filter in every V3 Series drive saves cost and time for installation (not 600V).
Sensorless Vector Control for all Motor Types:
- Induction Motors (IM)
- Permanent Magnet Motors (PM)
- Brushless DC Motors (BLDC)
- Synchronous Reluctance Motors (SynRM)
- Line Start PM Motor (LSPM)
Options:
- T2-OPORT-IN Remote keypad and display
- T3-OPPAD-IN Enhanced remote keypad and display
- T3 Stick plug in unit for fast up/down load of parameters
- smarty remote I/O, programmable control, USB and Ethernet connectivity
- speedy programmable control, USB and Ethernet connectivity
- savvyPanel smart touchscreen operator station
Pump Control:
|
HVAC Building Services:
|
IP20 - Up to 350HP
- Compact, robust enclosures for panel/cabinet mounting
- Covers power ranges up to 350HP
- Operates up to 122°F
- Keyhole mounts for fast installation
- Maintenance Interval Timer and Service Indication
- BACnet on-board as standard
|
|
Fast Connection
5mm rising clamp terminals with captive screws |
|
Quick Reference
Integrated help card |
|
Simple Installation
DIN rail (through Frame 3) and keyhole mounting (all frame sizes) |
|
|
Integrated Cable Management |  |
Contactor-style Power Arrangement |
|
Multi-language TFT display
(Not currently available on all models) |
|
|
Hand/Auto Keypad |
|
High Quality Long-Life Fans |
|
Pluggable Terminals |
|
|
Pluggable Modules |
