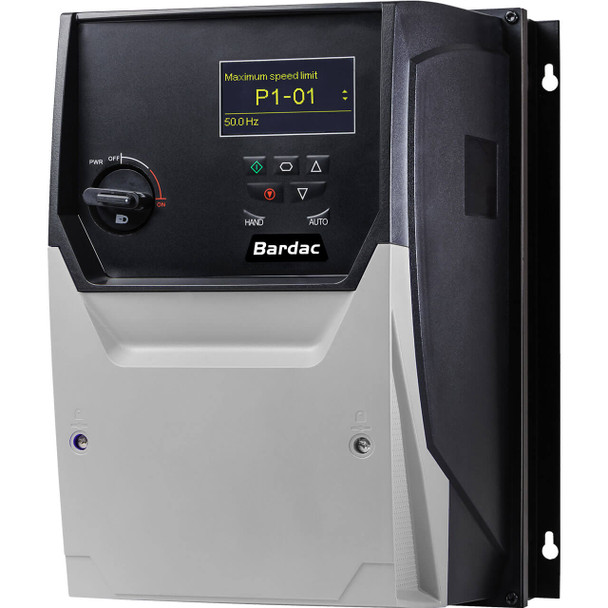

V3-360120-301E-T | Energy Efficient Outdoor NEMA 4X Rated, 10HP, 600V, 3-ph in, 600V, 3-ph out

SKU:
V3-360120-301E-T
Availability:
4 weeks A.R.O.
Power:
10HP
Input (Supply):
600V, 3-ph in
Output Rating:
600V, 3-ph, 12A
Amps:
12A
Enclosure Type:
NEMA 4X
Frame Size:
3
Weight:
17 lb
Dimensions (H x W x D):
12.2" x 8.3" x 10.5"
More Information:
Data Sheet

Description

Energy efficient fan and pump drives with a fast payback!

Multiple Pump Control

BACnet Interface

Built-In PID Controller

Control Modes:

  • Sensorless Vector Speed Control
  • PM Vector Control
  • BLDC Control
  • Synchronous Relectuance

Built-in EMC Filter

An internal filter in every V3 Series drive saves cost and time for installation (not 600V).

Sensorless Vector Control for all Motor Types:

  • Induction Motors (IM)
  • Permanent Magnet Motors (PM)
  • Brushless DC Motors (BLDC)
  • Synchronous Reluctance Motors (SynRM)
  • Line Start PM Motor (LSPM)

Options:

Pump Control:

  • Controlling Your Pump System
  • Multi-pump Control
  • Pump Staging Cascade Control
  • Optimizing Efficiency
  • Hand / Auto
  • Avoid Pump Downtime
  • Blockage detect/clear
  • Dry Run Protection
  • Motor Preheat Function
  • Pump Stir Cycle
  • Pump Prime with Burst Pipe Detection
  • Drive Controlled Bypass

HVAC Building Services:

  • Controlling Your HVAC System
  • Multiple Fan Operation
  • Building Automation
  • Optimizing Efficiency
  • Hand / Auto
  • Belt Break Detection
  • Noise Reduction
  • Resonance Avoidance
  • Drive Controlled Bypass

NEMA 4X (IP66) - Up to 15HP - Outdoor Rated*

  • Sizes 2-3 up to 15HP
  • Dust tight and washdown ready
  • *Outdoor applications will require a Sun Shade (not included)



Dust-Tight

Install directly on your processing equipment and be sure of protection from dust and contaminants.

Ready for Washdown

Sealed ABS enclosures and corrosion resistant heatsink make these models ideal for high-pressure washdown applications.
