Description
Single Phase DC Systems Drives
Non-isolated, non-regenerative single phase DC drive with reversing and fast stopping.
Must not be connected to other controllers without signal isolation being added, consider using isolated drive for systems applications.

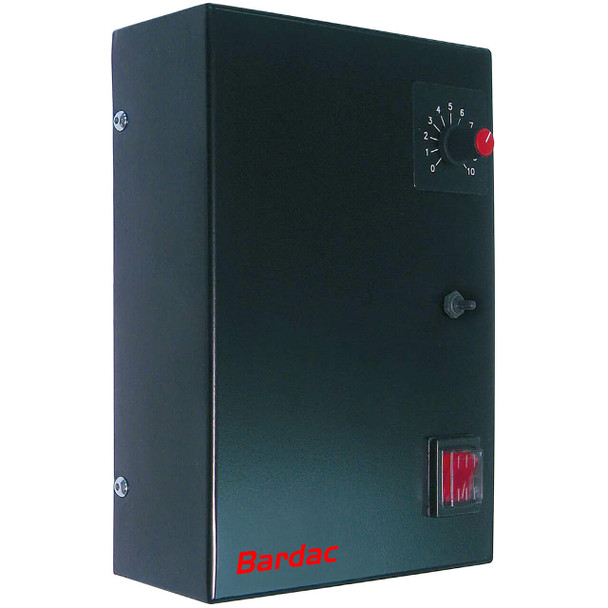

400ER Key Features:
- Enclosed
- Fitted with set speed potentiometer, FWD/OFF/REV switch and power isolator switch
- Reversing and fast stopping
- For DC motors rated up to 4 Amps
- Single Quadrant operation
- Non Isolated control electronics for single shaft applications
- Extra 50% peak torque for rapid acceleration or shock loads
- Torque control input for basic winding or tension control, with overspeed limiting
- Ultra stable potentiometer reference for optimum long term speed and torque stability
- Compact size
- International dual voltage supply compatability (100-130VAC and 200-264VAC)
- Integral AC supply fuse
- Output signals for easy display of motor speed and load
- Switch selectable feedback calibration – no component changes
- Precision tach rectifier
- Zero speed signal output
- Motor overload output
- Remote stop/start input
- User adjustable:
- Acceleration
- Deceleration
- Max motor speed
- Min motor speed
- Max motor current
- Stability
- IR comp
- Motor overload output
- Output signals for easy display of motor speed and load
- Zero speed signal output
- Switch selectable feedback calibration – no component changes
- Adjustable IR compensation for improved AVF speed regulation
- Adjustable stability control for optimum motor response
- Easily interfaced with armature reversing module
