Bardac Drives

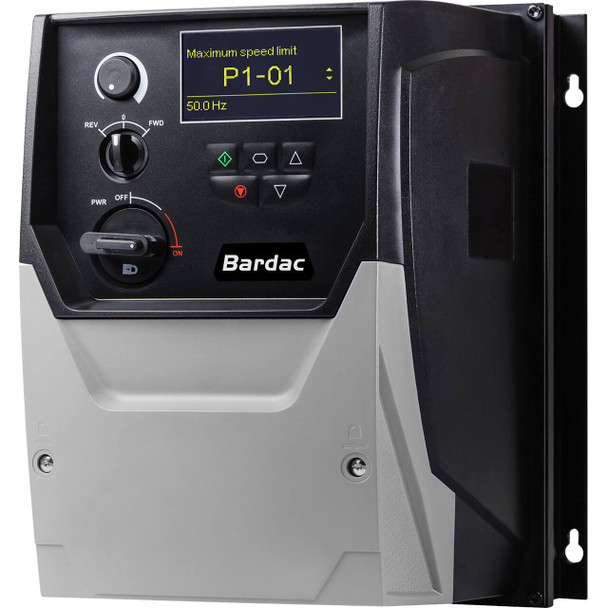

P2-24030-3HF4B-T | Outdoor NEMA 4X Rated Systems Vector Drive, 3HP, 460V, 3-ph in, 460V, 3-ph out

SKU:
P2-24030-3HF4B-T
Availability:
4 weeks A.R.O.
Power:
3HP
Input (Supply):
460V, 3-ph in
Output Rating:
460V, 3-ph, 5.8A
Amps:
5.8A
Enclosure Type:
NEMA 4X
Frame Size:
2
Weight:
10.8 lb
Dimensions (H x W x D):
10.1" x 7.4" x 9.4"
More Information:
Data Sheet

Description

High performance, variable frequency drives with excellent usability and flexibility to meet the needs of your application.

Sensorless Vector Control

Up to 200% torque from zero speed ensures reliable starting and accurate speed control under all load conditions.

PM Motor Control

Future proof. Allows upgrade to the latest generation of high efficiency permanent magnet motors.

Built-in EMC Filter

An internal filter in every P2 Series drive saves cost and time for installation (not 600V).

Integral Brake Transistor

Saves space, cost, and time for installation. (Frame 2 and up)

Sensorless Vector Control for all Motor Types

  • Induction Motors (IM)
  • Permanent Magnet Motors (PM)
  • Brushless DC Motors (BLDC)
  • Synchronous Reluctance Motors (SynRM)
  • Line Start PM Motor (LSPM)

Options:

NEMA 4X (IP66) - Up to 10HP - Outdoor Rated*

  • Sizes 2-3 up to 10 HP/7.5 kW
  • Dust tight and washdown ready
  • *outdoor use with appropraite sun shield only



Dust-Tight

Install directly on your processing equipment and be sure of protection from dust and contaminants.

Ready for Washdown

Sealed ABS enclosures and corrosion resistant heatsink make these models ideal for high-pressure washdown applications.
