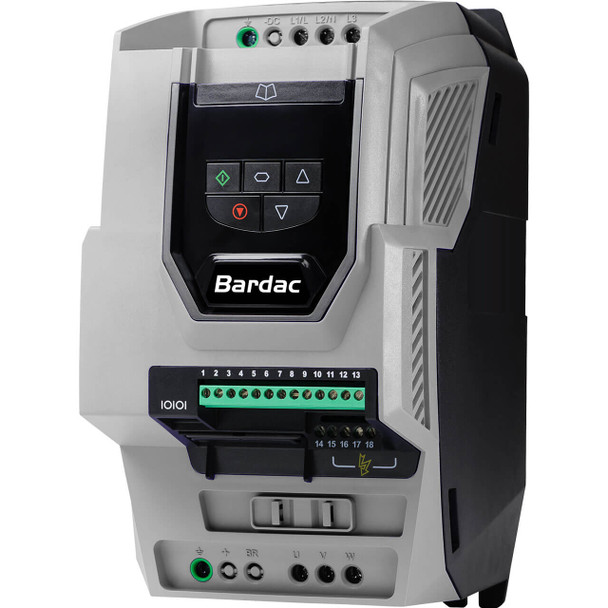

P2-34150-3HF42-T | IP20 Systems Vector Drive, 15HP, 460V, 3-ph in, 460V, 3-ph out

SKU:
P2-34150-3HF42-T
Availability:
Typically in stock (Maryland)
Power:
15HP
Input (Supply):
460V, 3-ph in
Output Rating:
460V, 3-ph, 24A
Amps:
24A
Enclosure Type:
IP20 (open)
Frame Size:
3
Weight:
7.7 lb
Dimensions (H x W x D):
10.3" x 5.2" x 8.1"
More Information:
Data Sheet

Description

High performance, variable frequency drives with excellent usability and flexibility to meet the needs of your application.

Sensorless Vector Control

Up to 200% torque from zero speed ensures reliable starting and accurate speed control under all load conditions.

PM Motor Control

Future proof. Allows upgrade to the latest generation of high efficiency permanent magnet motors.

Built-in EMC Filter

An internal filter in every P2 Series drive saves cost and time for installation (not 600V).

Integral Brake Transistor

Saves space, cost, and time for installation. Frame 2 and up.

Sensorless Vector Control for all Motor Types

  • Induction Motors (IM)
  • Permanent Magnet Motors (PM)
  • Brushless DC Motors (BLDC)
  • Synchronous Reluctance Motors (SynRM)
  • Line Start PM Motor (LSPM)

Options:

IP20 - Up to 350HP

  • Compact, robust enclosures for panel/cabinet mounting
  • Sizes 2-4, 6A, 6B & 8 cover power ranges up to 350HP
  • Operates up to 122°F
  • Keyhole mounts for fast installation
  • Maintenance Interval Timer and Service Indication
  • ModbusRTU and CAN on-board as standard

 Fast Connection

5mm rising clamp terminals with captive screws

Quick Reference

Integrated help card



Simple Installation

DIN rail (through Frame 3) and keyhole mounting (all frame sizes)



Integrated Cable Management Contactor-style Power Arrangement

Multi-language TFT display

(Not currently available on all models)

Hand/Auto Keypad

High Quality Long-Life Fans

Pluggable Terminals

Pluggable Modules
