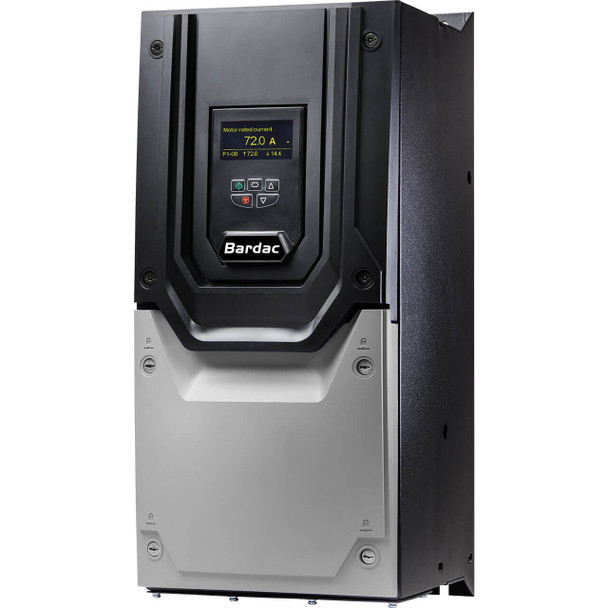

P2-54050-3HF4N-T | NEMA 12 Rated Systems Vector Drive, 50HP, 460V, 3-ph in, 460V, 3-ph out

SKU:
P2-54050-3HF4N-T
Availability:
Typically in stock (Maryland)
Power:
50HP
Input (Supply):
460V, 3-ph in
Output Rating:
460V, 3-ph, 72A
Amps:
72A
Enclosure Type:
NEMA 12
Frame Size:
5
Weight:
49.6 lb
Dimensions (H x W x D):
21.3" x 9.3" x 10.6"
More Information:
Data Sheet

Description

High performance, variable frequency drives with excellent usability and flexibility to meet the needs of your application.

Sensorless Vector Control

Up to 200% torque from zero speed ensures reliable starting and accurate speed control under all load conditions.

PM Motor Control

Future proof. Allows upgrade to the latest generation of high efficiency permanent magnet motors.

Built-in EMC Filter

An internal filter in every P2 Series drive saves cost and time for installation (not 600V).

Integral Brake Transistor

Saves space, cost, and time for installation. (Frame 2 and up)

Sensorless Vector Control for all Motor Types

  • Induction Motors (IM)
  • Permanent Magnet Motors (PM)
  • Brushless DC Motors (BLDC)
  • Synchronous Reluctance Motors (SynRM)
  • Line Start PM Motor (LSPM)

Options:

NEMA 12 (IP55) - Up to 250HP

  • Compact, robust enclosures for panel/cabinet mounting
  • Sizes 4-7 cover power ranges up to 250HP/75kW
  • Operates from 14°F to 122°F

All P2 Series drives provide 150% overload for 60 seconds as standard, ensuring each drive is suitable for Heavy Duty applications, while the NEMA 12 enclosed versions ensure the drive is tough enough to survive in industrial environments.
