smarty7-XAIO | Automation Controller, Ethernet and USB, Distributed Control, 32 I/O Points, 6x Frequency I/O, 2x Encoder Inputs, Optional Expandable I/O

NEW smarty⁷-XAIO

The new smarty⁷, dw250-XAIO series controllers are a full featured range of high performance, industrial, programmable controllers for process and machine control that provide cost effective solutions for systems of any size or complexity.

The Basics

• designed & assembled in the USA
• smart distributed control for the IIoT
• peer-to-peer connections over Ethernet
• unlimited i/o expansion
• Internet accessible
• 100% compatibility with all other drive.web devices
• savvy design, monitoring, and diagnostic tools

Features

• performs complex motion control functions & logic in milliseconds
• encoder pulses up to 1 MHz with 64 bit count
• shares encoder pulses in real-time between units over Ethernet
• 60 plug-in terminals
• cost effective in systems of any size or complexity
• Floating point or integer math
• Clock time & date with SNTP server interface
• savvy tools with trending, smart phone interface, drag & drop connections
• 100baseTX Ethernet with drive.web peer-to-peer networking
• USB-C port - provides system-wide access to all devices - drives, controllers, touch screens, etc.
• Battery holder for real time clock

Applications

• basic switching to complex logic
• simple arithmetic to complex math
• winders, open/closed loop with smart tension control
• registration, indexing, electronic line shaft over Ethernet
• advanced motion and position control
• smart pumping and air flow functions
• sun tracking for solar energy optimization
• material handling, batch, and counting functions

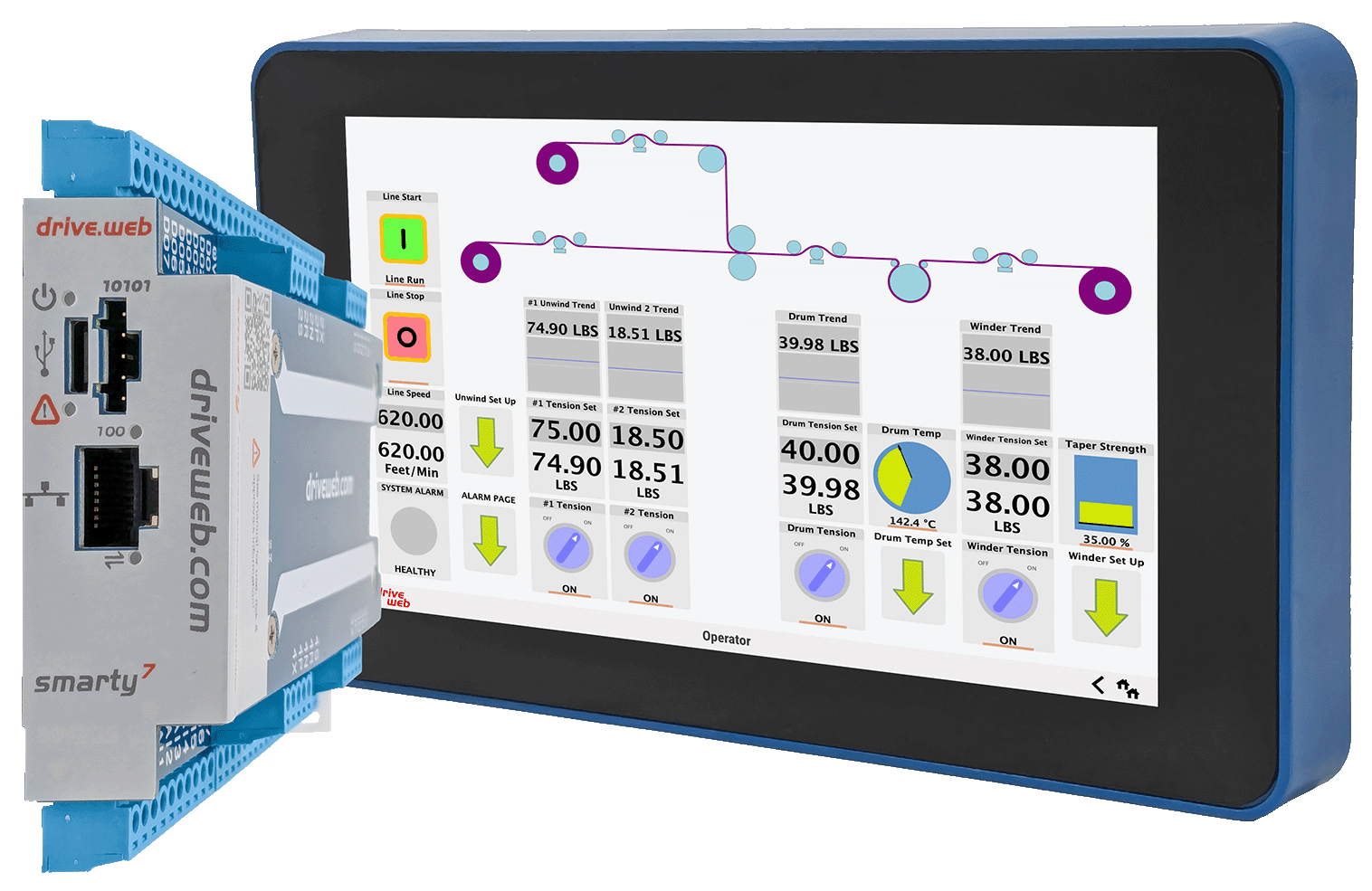

Standard savvyPanel Library

For iPad, iPhone, and touchscreen PC operator stations with arrows, meters, start and stop pushbuttons.

Standards Compliance:

UL, cUL, CE, UKCA, FCC 47 CFR § 15, and ICES-003

smarty⁷ model dw250-XAIO Universal Automation Controller is a new member of the drive.web family of products offering extended precision analog I/O, features, flexibility and options - it beats any PLC!

drive.web Distributed control with peer-to-peer connections over Ethernet ensures:

• Unlimited I/O expansion
• Unlimited system processing capacity
• Cost effective control for systems of any size or complexity
• Completely homogeneous integration of controllers, drives, I/O, and HMIs
• Easy IIoT enterprise integration
• Elimination of PLC or CPU bottlenecks

Basic smarty⁷ Features & Functions:

• 8, Analog Inputs: ±11V (16 bits) analog in, or 5/24 VDC digital in
• 8, Analog Outputs: ±10.5VDC, 10mA
• 8, Digital Inputs: 50VDC max, 8VDC threshold, 3V hysteresis, 1kHz
• 8, Digital Outputs: 24VDC, up to 300 mA shared
• 6, Fast I/O: digital inputs (100Khz) or stepper/digital out (500Khz)
• 1, Fast timing/stepper/frequency output: 30 VDC 100Khz
• 2, Encoder inputs: Quadrature A/B (or 1, ABZ), 5/24V, 1 Mhz
• ModbusRTU client port [RS485 (server optional)]
• ModbusTCP/IP client and server (Ethernet)
• EIP/PCCC (Ethernet)
• Accelerometer, barometer, thermometer, hygrometer
• Advanced Process Control Library
• Winder & Web Tension Control Library
• Advanced Math Library
• savvyPanel touch screen controller
• Solar Position Library
• Advanced Motion Library

Additional XAIO Features:

• 4, Independently-isolated, multipurpose, millivolt-level inputs
• For loadcell, thermocouple, potentiometer & more
