Description
High performance, variable frequency drives with excellent usability and flexibility to meet the ne
eds of your application.
Sensorless Vector Control
Up to 200% torque from zero speed ensures reliable starting and accurate speed control under all load conditions.
PM Motor Control
Future proof. Allows upgrade to the latest generation of high efficiency permanent magnet motors.
Built-in EMC Filter
An internal filter in every P2 Series drive saves cost and time for installation (not 600V).
Integral Brake Transistor
Saves space, cost, and time for installation. Frame 2 and up.
Sensorless Vector Control for all Motor Types
- Induction Motors (IM)
- Permanent Magnet Motors (PM)
- Brushless DC Motors (BLDC)
- Synchronous Reluctance Motors (SynRM)
- Line Start PM Motor (LSPM)
Options:
- T2-OPORT-IN Remote keypad and display
- T3-OPPAD-IN Enhanced remote keypad and display
- T3 Stick plug in unit for fast up/down load of parameters
- smarty remote I/O, programmable control, USB and Ethernet connectivity
- speedy programmable control, USB and Ethernet connectivity
- savvyPanel smart touchscreen operator station

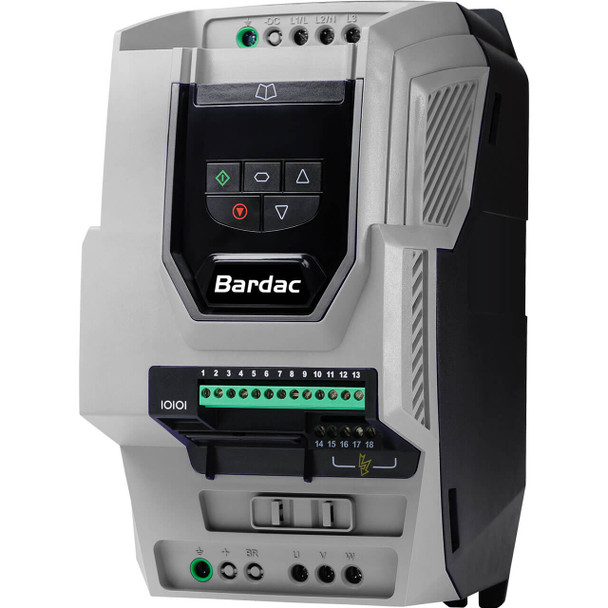

IP20 - Up to 350HP
- Compact, robust enclosures for panel/cabinet mounting
- Sizes 2-4, 6A, 6B & 8 cover power ranges up to 350HP
- Operates up to 122°F
- Keyhole mounts for fast installation
- Maintenance Interval Timer and Service Indication
- ModbusRTU and CAN on-board as standard
|
|
Fast Connection
5mm rising clamp terminals with captive screws |
|
Quick Reference
Integrated help card
|
|
Simple Installation
DIN rail (through Frame 3) and keyhole mounting (all frame sizes)
|
|
|
Integrated Cable Management |  |
Contactor-style Power Arrangement |
|
Multi-language TFT display
(Not currently available on all models) |
|
|
Hand/Auto Keypad |
|
High Quality Long-Life Fans |
|
Pluggable Terminals |
|
|
Pluggable Modules |
