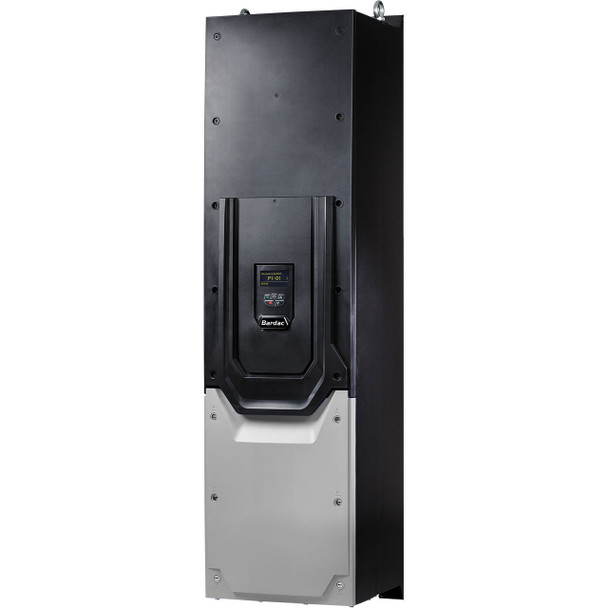

Description
High performance, variable frequency drives with excellent usability and flexibility to meet the ne
eds of your application.
Sensorless Vector Control
Up to 200% torque from zero speed ensures reliable starting and accurate speed control under all load conditions.
PM Motor Control
Future proof. Allows upgrade to the latest generation of high efficiency permanent magnet motors.
Built-in EMC Filter
An internal filter in every P2 Series drive saves cost and time for installation (not 600V).
Integral Brake Transistor
Saves space, cost, and time for installation. (Frame 2 and up)
Sensorless Vector Control for all Motor Types
- Induction Motors (IM)
- Permanent Magnet Motors (PM)
- Brushless DC Motors (BLDC)
- Synchronous Reluctance Motors (SynRM)
- Line Start PM Motor (LSPM)
Options:
- T2-OPORT-IN Remote keypad and display
- T3-OPPAD-IN Enhanced remote keypad and display
- T3 Stick plug in unit for fast up/down load of parameters
- smarty remote I/O, programmable control, USB and Ethernet connectivity
- speedy programmable control, USB and Ethernet connectivity
- savvyPanel smart touchscreen operator station
NEMA 12 (IP55) - Up to 250HP
- Compact, robust enclosures for panel/cabinet mounting
- Sizes 4-7 cover power ranges up to 250HP/75kW
- Operates from 14°F to 122°F
All P2 Series drives provide 150% overload for 60 seconds as standard, ensuring each drive is suitable for Heavy Duty applications, while the NEMA 12 enclosed versions ensure the drive is tough enough to survive in industrial environments.
